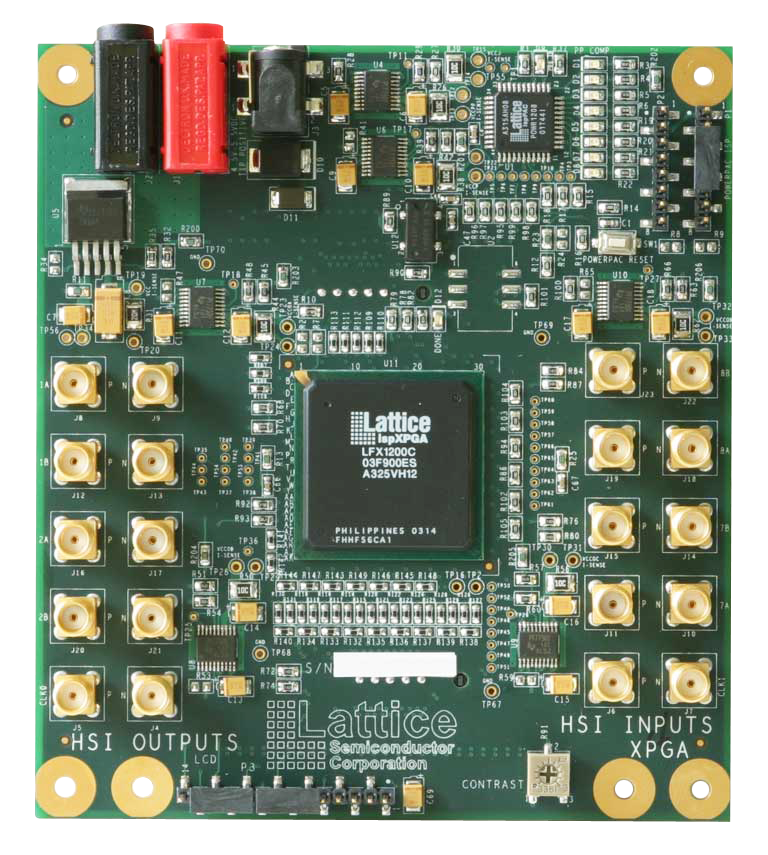

The ispXPGA Evaluation Board is a complete hardware kit that allows the user to program, evaluate, and de-bug a design for the Lattice ispXPGA architecture.
You will need to use the following software to use this evaluation board:
Quick Reference | Technical Resources |
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| ispXPGA Evaluation Board User's Guide Includes a user guide and sample program for use with the ispXPGA Evaluation Board. | 10/1/2004 | ZIP | 757.5 KB | ||||
| Programming Cable - User Guide Describes the features and recommended usage guidelines of Lattice ispDOWNLOAD Cables. | FPGA-UG-02042 | 26.7 | 4/24/2024 | 992.6 KB | |||
*By clicking on the "Notify Me of Changes" button, you agree to receive notifications on changes to the document(s) you selected.
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| PCN 03A-10 - ispXPGA1200 Discontinuance PCN | PCN03A-10 | 1 | 2/1/2010 | 37.8 KB | |||
| PCN 03A-10 - ispXPGA1200 Discontinuance PCN - Japanese Lanauage | PCN03A-10 | 1 | 2/1/2010 | 117.8 KB | |||
| PCN09I-10 Notification of Intent to Discontinue Select Mature Devices | PCN09I-10 | 1 | 9/7/2010 | 187.4 KB | |||
| PCN09I-10 Notification of Intent to Discontinue Select Mature Devices - Japanese Language | PCN09I-10 | 1 | 6/1/2010 | 175.7 KB | |||
