The MachXO Standard Evaluation Board is a ready-made, stable yet flexible platform for evaluation and development with the Lattice MachXO device.
Jump to
Kit Contents
- MachXO Standard Evaluation Board featuring:
- MachXO device: LCMXO640C-4F256C or LCMXO2280C-4F256C
- Lattice ispClock5610 Clock Manager: ispPAC-CLK5610V-01T48C
- 33MHz oscillator
- Power input jack and on-board power supply circuitry (2.8V to 5.0V)
- On-board selectable MachXO core voltage
- Status LEDs and 8 I/O LEDs
- 8-bit input switch
- Access to all device I/O
- Prototyping area
- Landing pads for LCD display
- ispDOWNLOAD Cable
- AC Adapter (international plugs)

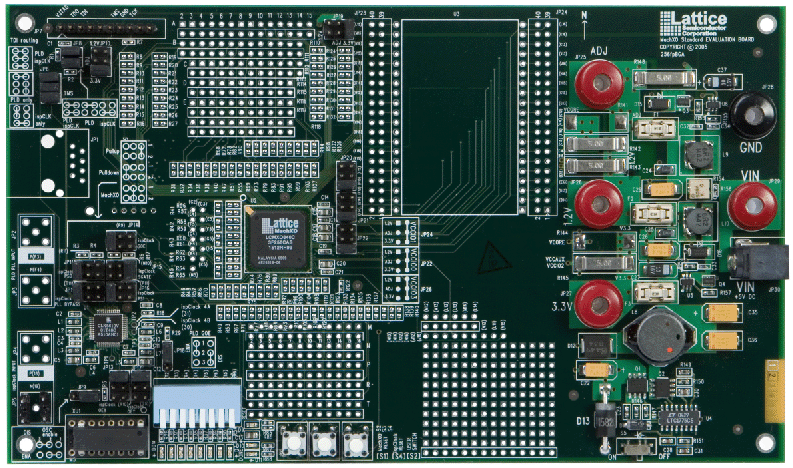

Board Photos
Ordering Information
- Ordering Part Numbers: LCMXO640C-L-EV or LCMXO2280C-L-EV
- Click here to find an authorized Lattice distributor near you
- Click here to order now from the Lattice Online Store
Documentation
Quick Reference | Downloads |
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| MachXO Standard Evaluation Board User's Manual - Rev 000 PCB Describes the features and function of the MachXO Standard Evaluation Board for PCBs marked as Rev 000 only. Includes Schematics. | EB20 | 4/1/2007 | 910.6 KB | ||||
| MachXO Standard Evaluation Board User's Manual - Rev 001 & 002 PCB Describes the features and function of the MachXO Standard Evaluation Board for PCBs marked as Rev 001 only. Includes Schematics. | EB21 | 01.6 | 3/14/2008 | 944.7 KB | |||
| Programming Cable - User Guide Describes the features and recommended usage guidelines of Lattice ispDOWNLOAD Cables. | FPGA-UG-02042 | 26.7 | 4/24/2024 | 992.6 KB | |||
*By clicking on the "Notify Me of Changes" button, you agree to receive notifications on changes to the document(s) you selected.
| TITLE | NUMBER | VERSION | DATE | FORMAT | SIZE | ||
|---|---|---|---|---|---|---|---|
| Select All | |||||||
| MachXO Standard Evaluation Board Sample Program Contains a sample program for the MachXO Standard Eval Boards (for both the MachXO (640 or 2280) and ispClock devices). These programs are pre-loaded onto new MachXO Standard Evaluation Boards. See the readme.txt file included in the .zip for detail | 2/18/2009 | ZIP | 19 KB | ||||
